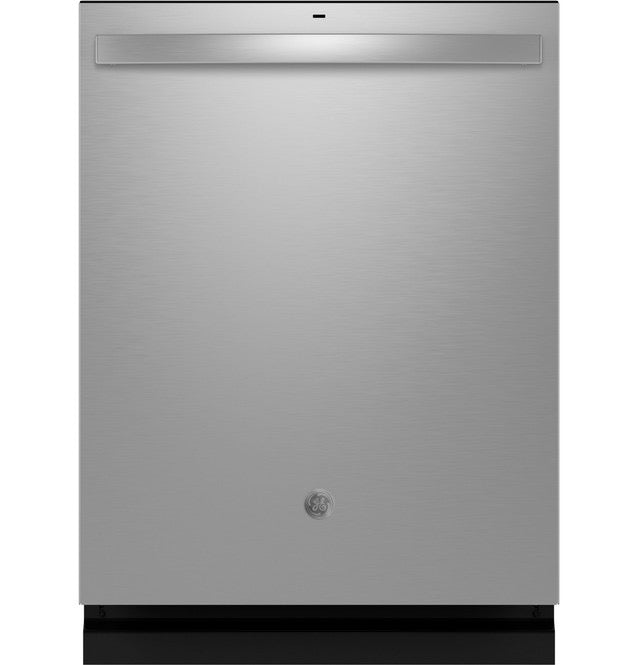

GE® ENERGY STAR® Top Control with Stainless Steel Interior Dishwasher with Sanitize Cycle  Model #: GDT670SYVFS

Dimensions: 34 H x 23 3/4 W x 24 D

ACCESSORIES

Optional 12' Drain Hose Optional hose kit (WD24X10065)

APPEARANCE

Color Appearance Fingerprint Resistant Stainless
Control Panel Color Storm Gray
Door Appearance Full-length door
Door Style Long Door with Top Controls
Handle Rounded Handle
Handle Color Stainless Steel
Installation Side or Top Mount Install Brackets Included
Built-Up Floor Capable
Flush Cabinet Installation

ECONOMICAL / QUIET

Door Insulation Insulation
Mastic
Motor Type Variable Speed
Outer Wrap Full-wrap Blanket
Bitumen
Quiet Features Quiet Water Valve
Sealed Toe Kick
Tub Collar Trim
Quiet Package 45 dBA

FEATURES

Additional Protection Active Flood Protect
Control Type Top Controls
8 Touchpads
Cap Touch Controls
Cutlery Tray One piece removable 3rd rack
Dishwasher Control Features 3 Digit Display Cycle Countdown with Bi-Color LED Status Light on door
1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators
Last Cycle Memory
Audible End-of-Cycle Signal
Control Lock with 1 Light
Dishwasher Cycles AutoSense
Heavy Wash
Normal Wash
1 Hour Wash
Rinse
Dishwasher Drying Features Normal, High, Off
Dry Boost™
Dishwasher Options Delay Start 1-12 Hr.
Child Lock
Start/Cancel
Bottle Jets
Steam + Sani (Certified to NSF Standard 184)
Dry Boost™ (High)
Dry Boost™ (Normal)
Wash TempBoost
Wash Zone Upper Only
Wash Zone Lower Only
Sabbath Mode
Dispenser Rinse Aid with Indicator and Adjustment
Exterior Style Traditional
Latch Pull with Handle
Leveling System 4 Leveling Legs
Lower Rack Ball-Tip Tines
Number of Cycles 5
Number of Options 11
Number of Place Settings 16
OU Certified No
Product Type Built-In
Rack Color Silver
Rack Features Ball-Tipped Tines
Adjustable Upper Rack
1 Piece Silverware Basket with 3 Cell Covers
Racking Material Nylon
Racking System Full 3rd rack + caddy
Sabbath Mode Yes
Sensor Clean Sensor
Showroom Power Mode Yes
Style Built-In Top Control
Top Rack/3rd Rack 3rd Rack + Caddy
Tub and Door Liner Stainless Steel
Tub Type Tall Tub
Upper Rack Premium Height Adjustable
Ball-Tip Tines
Smooth Glide Upper Rack
Wash Arms 3 Wash Levels
Lower
Middle
Upper
Bottle Jets
Bottle Wash Jets
Deep Clean Silverware Jets
Wash System Features Variable Speed Dual Pumps and Motors
Automatic Temperature Control
Drain Pump
Piranha™ Hard Food Disposer with removable filter
Automatic HotStart
Bottle Jets (4)
Wash System 600 Series
3-Level
Water Filtration System 100% Filtration with Piranha Hard Food Disposer and Removable Filter
WiFi Connect Optional (Requires part no. PBX23W00Y1)

POWER / RATINGS

Calrod Heater Watts 800/500
Electrical Requirements 120V ; 60Hz ; 6.6A
Energy Consumption (kWh/year) 240
Hertz 60
Power Connection Optional cord kit (GPFCORD - WX09X70910, WX09X70911)
Volts/Hertz/Amps 120V; 60Hz; 6.6A
Watts 936

WARRANTY

Labor Warranty Limited 1-year entire appliance
Parts Warranty Limited 1-year entire appliance
Warranty Notes See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight 112 lb
Cabinet Width 24 in
Cutout Depth (in) 24 in
Cutout Height (in) 33 1/2 in
Cutout Width (in) 24 in
Depth with Door Open 27 1/2 in
Depth Without Handle 24 in
Height w/ Legs Retracted - Minimum Height 33.375 in
Height w/Legs Extended - Maximum Height 34.625 in
Net Weight 99 lb
Overall Depth 24 in
Overall Depth with Handle 25.60 in
Overall Height 34 in
Overall Width 23 3/4 in
